          首頁 >> 產品中心 >>SERVO系列 >> YC-MS全自動多功能伺服印刷機 AUTOMATIC MULTIFUNCTION SERVO-COTROLLED PRINTING MACHINE
          详细说明

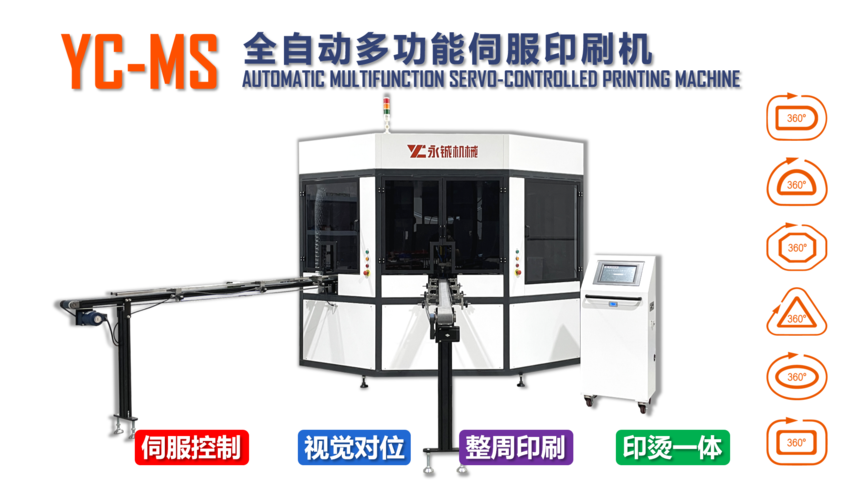

          YC-MS全自動多功能伺服印刷機 AUTOMATIC MULTIFUNCTION SERVO-COTROLLED PRINTING MACHINE

          最大印刷面積

          Maximum printing area

          250mm×200mm

          最大網框尺寸

          Max. screen frame size

          500mm×250mm

          承印物尺寸范圍

          Min. and max. size of product

          Ø20mm-Ø100mm

          最快印刷速度

          Maximum printing speed

          round: 50pcs/min

          oval: 35pcs/min

           (取決于產品大小以及印刷尺寸)

          (depends on dimension of the printed bottles)

          電源要求

          Power requirement

          380V  3phase  50/60Hz  30KW

          氣源要求

          Air consumption

          6 bar (75L/min)

          機器重量

          Weight

          4800KG



          收藏
          • 产品说明








                   適用于圓形、橢圓形、方形等各種不同形狀產品的局部或全周的印刷。

                  It suitable for printing various shapes articles.

                   整機采用全伺服驅動,調校簡單方便。

                  The whole machine adopts full servo driven, simple debug.

                   進、出料可選擇產品立式或臥式不同的輸送方式。

                  Feeding and discharging can choose vertical or horizontal conveying methods.

                   采用視覺影像定位系統,可識別瓶底部或瓶口特征進行精準定位。

                  Visual positioning system can recognize the bottom and mouth of bottles, Accurate positioning.

                   表面處理可選擇靜電除塵、火焰處理或者等離子處理。

                  Surface treatment can choose static dust cleaning , flame treatment or plasma treatment.

                   印刮可橫向或縱向設置調整。

                  Squeegee can be adjusted in horizontally and vertically.

                   紫外線固化可選擇LED光源或者UV汞燈。

                  LED lamp or UV mercury lamp is optional for uv curing.

                   可根據生產需要選擇2色-6色不同機型,還可以選擇燙金、貼標、印刷質量檢測功能。

                  We can choose 1-6 colors machine, hot stamping, labeling and printing quality inspection function according to production demand.
